4.5.24. Basis Functions#
Basis functions are used throughout data science to approximate a function. Typical applications are for smoothing data or simplifying further math. The basic idea is to pick a set of functions \(\{g_i\}\) that can be used to express another function, \(f\), in an expansion. We will restrict this discussion to functions of one variable and linear coefficients in the expansion. This allows us to write \(f(x)\) as a linear combination of functions \(\{g_i(x)\}\),
\(f(x) = \sum_{i=0}^\infty c_ig_i(x)\).
This equality is only exact for certain sets of functions. This is analagous to basis sets of vector spaces. Rather than go into the details of the math of expansions and spanning spaces, we will provide two standard examples of \(\{g_i\}\)s: polynomials and gaussians.
4.5.24.1. Polynomial basis functions#
The idea is to express some function \(f(x)\) as a linear combination of polynomials. This is exact in the limit of infinite powers. This can be expressed as \(g_i(x) = x^i\). Thus we get
\(f(x) = \sum_{i=0}^\infty c_ix^i = c_0 + c_1x + c_2x^2 + c_3x^3...\).
If we truncate this expansion at \(i=1\) we get a linear approximation of \(f\),
\(f(x) \approx c_0 + c_1x\).
Fitting of these linear coefficients, \(c_0\) and \(c_1\), is commonly reffered to as linear regression.
As an example of linear regression we will utilize a concoted data set and then fit these points to a line. Each “data point” represents an ordered pair \((x,f(x))\). If we have two data points we would have two depedent linear equations
\( f(x_1) = c_0 + c_1x_1 \\ f(x_2) = c_0 + c_1x_2.\)
With only two points, we can solve for \(c_0\) and \(c_1\) exactly. This simply equates to two points determine a line. Note that this can also be expressed as a matrix equation:
\(\begin{bmatrix} f(x_1) \\ f(x_2) \end{bmatrix} = \begin{bmatrix} c_0 + c_1x_1 \\ c_0 + c_1x_2 \end{bmatrix} = \begin{bmatrix} 1 & x_1 \\ 1 & x_2 \end{bmatrix} \begin{bmatrix} c_0 \\ c_1 \end{bmatrix} \).
The right-hand most expression is referred to as the coefficient matrix multiplied by the solution vector. The solution vector can be solved for by left multiplying the expression by the inverse of the coefficient matrix
\(\begin{bmatrix} c_0 \\ c_1 \end{bmatrix} = \begin{bmatrix} 1 & x_1 \\ 1 & x_2 \end{bmatrix}^{-1}\begin{bmatrix} f(x_1) \\ f(x_2)\end{bmatrix}\).
For an overdetermined set of linear equations we can solve for the solution vector (set of coefficients \(\{c_i\}\)) using a least squares algorithm. The problem is usually set up as
\(\mathbf{A}\mathbf{x} = \mathbf{b}\),
where \(\mathbf{A}\) is the coefficient matrix, \(\mathbf{x}\) is the solution vector and \(\mathbf{b}\) is the \(f(x)\) vector similar to above.

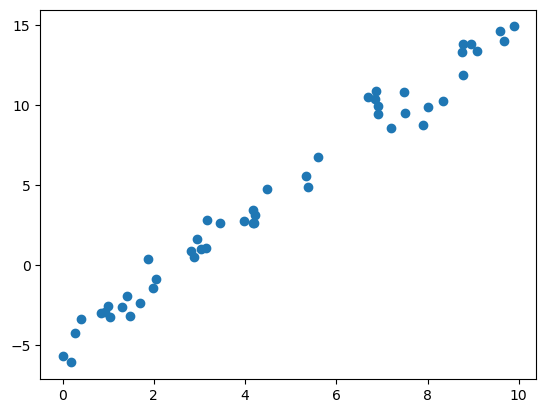

# first generate a "data set"
rng = np.random.RandomState(1)
x = 10 * rng.rand(50)
y = 2 * x - 5 + rng.randn(50)
plt.scatter(x, y);

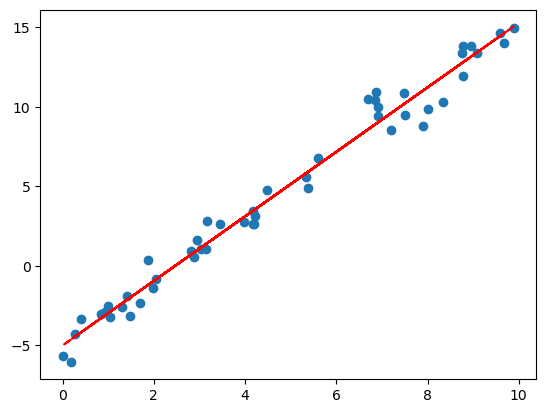

# now we need to generate the coefficient matrix
A = np.stack((x,np.ones(x.size)),axis=1)
# use numpy least squares routine
cs = np.linalg.lstsq(A,y)[0]
plt.scatter(x, y)
plt.plot(x,cs[0]*x+cs[1],'r--')
[<matplotlib.lines.Line2D at 0x117b54e10>]
We could truncate past second order to get a polynomial fit. A general Nth order polynomial approximation for \(f\) is given as
\(f(x) \approx \sum_{i=0}^N c_ix^i = c_0 + c_1x + c_2x^2 + c_3x^3 + ... + c_Nx^N\).

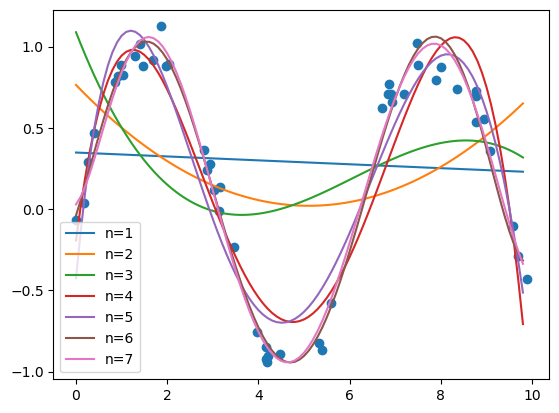

# code to do successive polynomial fits
maxN = 7 # maximum order of polynomial - change to increase or decrease maximum order of polynomial
# polynomial function compute polynomial value of x using coefficient cs
def poly(x,cs):
f=0.0
for i in range(cs.size):
f += cs[i]*x**i
return f
# generate sinusoidal "data"
rng = np.random.RandomState(1)
x = 10 * rng.rand(50)
y = np.sin(x) + 0.1 * rng.randn(50)
# plot data
plt.scatter(x, y)
xfit = np.arange(np.amin(x),np.amax(x),0.1)
# perform successive polynomial fits
A = np.ones(x.size)
for i in range(1,maxN+1):
A = np.column_stack((A,np.power(x,i)))
cs = np.linalg.lstsq(A,y)[0]
label = "n="+str(i)
plt.plot(xfit, poly(xfit,cs),label=label)
plt.legend()
<matplotlib.legend.Legend at 0x11675dfd0>
4.5.24.2. Gaussian basis functions#
Instead of using polynomials we can use gaussians. Again, we need to truncate to \(N\) gaussians and these will be centered at different positions in x. This can be expressed as
\(f(x) \approx \sum_{i=0}^N c_ig_i(x)\)
where
\(g_i(x) = e^{-\alpha (x-x_i)^2}\)
and \(\alpha\) is the inverse of the spread of the gaussian and \(x_i\) is the center of the gaussian.

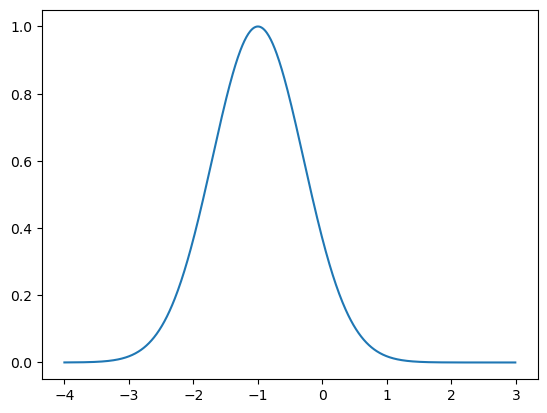

# plot a gaussian
# alpha is related to the spread of gaussian
alpha = 1.0
# gaussian function
def gauss(x,xi,alpha):
return np.exp(-alpha*(x-xi)**2)
xi = -1.0
xs = np.arange(-4,3,0.01)
plt.plot(xs,gauss(xs,xi,alpha))
[<matplotlib.lines.Line2D at 0x117ba47d0>]

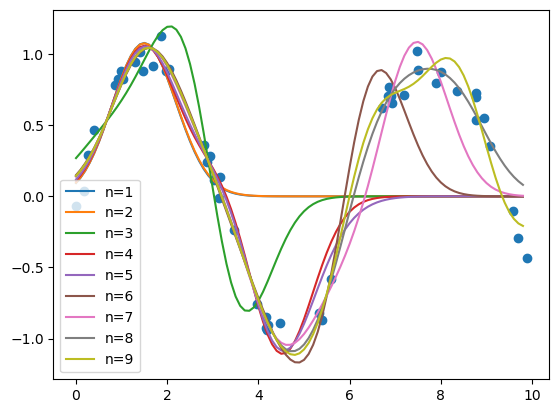

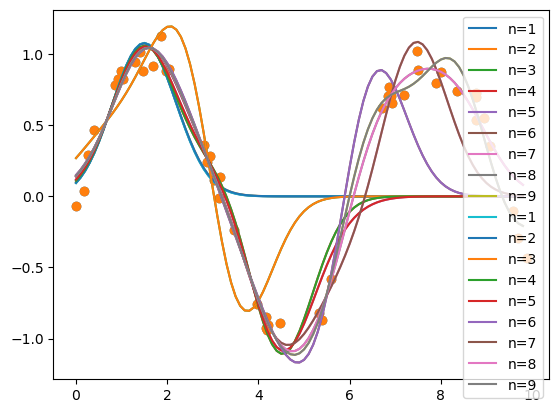

# fit "data" to guassians
# number of gaussians
N = 10
def gauss_sum(x,cs,xis,alpha):
f = 0.
for i in range(cs.size):
f += cs[i]*gauss(x,xis[i],alpha)
return f
# generate sinusoidal "data"
rng = np.random.RandomState(1)
x = 10 * rng.rand(50)
y = np.sin(x) + 0.1 * rng.randn(50)
# plot data
plt.scatter(x, y)
# spacing of gaussians
deltaX = (np.amax(x)-np.amin(x))/N
xMin = np.amin(x)
xis = np.empty(N,dtype=float)
for i in range(N):
xis[i] = xMin+(i+0.5)*deltaX
# x values for plotting gaussians
xfit = np.arange(np.amin(x),np.amax(x),0.1)
# make coefficient matrix for gaussian values
A = gauss(x,xis[0],alpha)
for i in range(1,N):
A = np.column_stack((A,gauss(x,xis[i],alpha)))
cs = np.linalg.lstsq(A,y)[0]
label = "n="+str(i)
plt.plot(xfit, gauss_sum(xfit,cs,xis,alpha),label=label)
plt.legend()
<matplotlib.legend.Legend at 0x117ba6710>

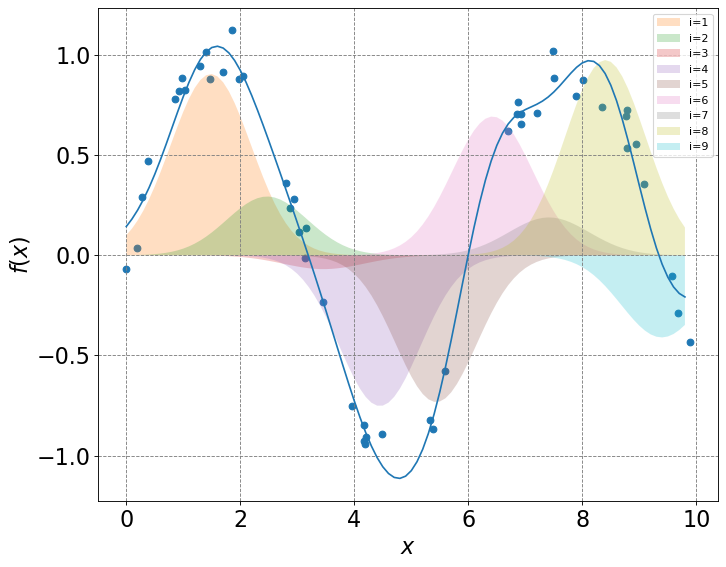

# initialize a figure
ax = define_figure(xlabel="$x$",ylabel="$f(x)$")
ax.scatter(x, y)
ax.plot(xfit, gauss_sum(xfit,cs,xis,alpha))
for i in range(1,N):
label = "i="+str(i)
ax.fill_between(xfit,cs[i]*gauss(xfit,xis[i],alpha),alpha=0.25,label=label)
plt.legend()
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
Cell In[8], line 2
1 # initialize a figure
----> 2 ax = define_figure(xlabel="$x$",ylabel="$f(x)$")
3 ax.scatter(x, y)
4 ax.plot(xfit, gauss_sum(xfit,cs,xis,alpha))
Cell In[2], line 5, in define_figure(xlabel, ylabel)
3 fig = plt.figure(figsize=(10,8), dpi= 80, facecolor='w', edgecolor='k')
4 ax = plt.subplot(111)
----> 5 ax.grid(b=True, which='major', axis='both', color='#808080', linestyle='--')
6 ax.set_xlabel(xlabel,size=20)
7 ax.set_ylabel(ylabel,size=20)
File /opt/anaconda3/lib/python3.13/site-packages/matplotlib/axes/_base.py:3312, in _AxesBase.grid(self, visible, which, axis, **kwargs)
3310 _api.check_in_list(['x', 'y', 'both'], axis=axis)
3311 if axis in ['x', 'both']:
-> 3312 self.xaxis.grid(visible, which=which, **kwargs)
3313 if axis in ['y', 'both']:
3314 self.yaxis.grid(visible, which=which, **kwargs)
File /opt/anaconda3/lib/python3.13/site-packages/matplotlib/axis.py:1746, in Axis.grid(self, visible, which, **kwargs)
1743 if which in ['major', 'both']:
1744 gridkw['gridOn'] = (not self._major_tick_kw['gridOn']
1745 if visible is None else visible)
-> 1746 self.set_tick_params(which='major', **gridkw)
1747 self.stale = True
File /opt/anaconda3/lib/python3.13/site-packages/matplotlib/axis.py:971, in Axis.set_tick_params(self, which, reset, **kwargs)
958 """
959 Set appearance parameters for ticks, ticklabels, and gridlines.
960
(...)
968 gridlines.
969 """
970 _api.check_in_list(['major', 'minor', 'both'], which=which)
--> 971 kwtrans = self._translate_tick_params(kwargs)
973 # the kwargs are stored in self._major/minor_tick_kw so that any
974 # future new ticks will automatically get them
975 if reset:
File /opt/anaconda3/lib/python3.13/site-packages/matplotlib/axis.py:1120, in Axis._translate_tick_params(cls, kw, reverse)
1118 for key in kw_:
1119 if key not in allowed_keys:
-> 1120 raise ValueError(
1121 "keyword %s is not recognized; valid keywords are %s"
1122 % (key, allowed_keys))
1123 kwtrans.update(kw_)
1124 return kwtrans
ValueError: keyword grid_b is not recognized; valid keywords are ['size', 'width', 'color', 'tickdir', 'pad', 'labelsize', 'labelcolor', 'labelfontfamily', 'zorder', 'gridOn', 'tick1On', 'tick2On', 'label1On', 'label2On', 'length', 'direction', 'left', 'bottom', 'right', 'top', 'labelleft', 'labelbottom', 'labelright', 'labeltop', 'labelrotation', 'grid_agg_filter', 'grid_alpha', 'grid_animated', 'grid_antialiased', 'grid_clip_box', 'grid_clip_on', 'grid_clip_path', 'grid_color', 'grid_dash_capstyle', 'grid_dash_joinstyle', 'grid_dashes', 'grid_data', 'grid_drawstyle', 'grid_figure', 'grid_fillstyle', 'grid_gapcolor', 'grid_gid', 'grid_in_layout', 'grid_label', 'grid_linestyle', 'grid_linewidth', 'grid_marker', 'grid_markeredgecolor', 'grid_markeredgewidth', 'grid_markerfacecolor', 'grid_markerfacecoloralt', 'grid_markersize', 'grid_markevery', 'grid_mouseover', 'grid_path_effects', 'grid_picker', 'grid_pickradius', 'grid_rasterized', 'grid_sketch_params', 'grid_snap', 'grid_solid_capstyle', 'grid_solid_joinstyle', 'grid_transform', 'grid_url', 'grid_visible', 'grid_xdata', 'grid_ydata', 'grid_zorder', 'grid_aa', 'grid_c', 'grid_ds', 'grid_ls', 'grid_lw', 'grid_mec', 'grid_mew', 'grid_mfc', 'grid_mfcalt', 'grid_ms']
